This tutorial will show you how to asign icon on cell of JTable using CellRenderer, lets begin.
1. Create a JFrame class and add one JTable component from pallet named to
JTableAbstractTableModelWithIcon
2. Declaring variable
private Vector data = new Vector();
3. After initComponent write this code:
table.setModel(new AbstractTableModel() {
String[] colum = new String[]{"No", "Name", "Address"};
@Override
public int getRowCount() {
return data.size();
}
@Override
public int getColumnCount() {
return colum.length;
}
@Override
public Object getValueAt(int rowIndex, int columnIndex) {
return columnIndex == 0 ? "" + (rowIndex + 1) : data.get(rowIndex)[columnIndex];
}
@Override
public String getColumnName(int column) {
return colum[column];
}
});
4. At first column we asign custom cell rendererer: table.getColumn(table.getColumnName(0)).setCellRenderer(new TableCellRenderer() {
private Icon icon = new ImageIcon(getClass().getResource("icon.png"));
public Component getTableCellRendererComponent(JTable table, Object value, boolean isSelected, boolean hasFocus, int row, int column) {
JLabel label = new JLabel(value.toString());
label.setIcon(icon);
label.setOpaque(true);
label.setBackground(table.getBackground());
label.setForeground(table.getForeground());
if (isSelected) {
label.setBackground(table.getSelectionBackground());
label.setForeground(table.getSelectionForeground());
}
if (hasFocus) {
label.setBorder(BorderFactory.createLineBorder(Color.RED));
}
return label;
}
});5. Finally add some data: data.add(new String[]{"", "Sri Kuntadi", "Purwodadi"});
data.add(new String[]{"", "Fajar Ichwanul Arifin", "Cilacap"});
data.add(new String[]{"", "Arif Nurcahyo", "Magetan"});
data.add(new String[]{"", "Muh Adly Hamid", "Makasar"});

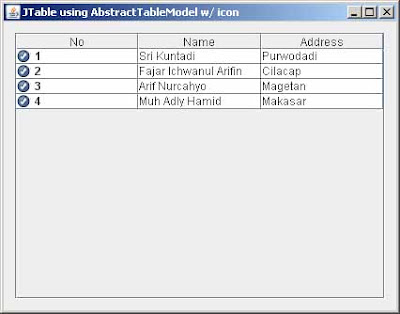

6. Now run project and you will get like this:
Conclusion:
Use TableCellRender to draw table cell.Complete Source/*
* JTableAbstractTableModel.java
*
* Created on 16 Juli 2008, 23:53
*/
package org.kazao.tips.tip009;
import java.awt.Color;
import java.awt.Component;
import java.util.Vector;
import javax.swing.BorderFactory;
import javax.swing.Icon;
import javax.swing.ImageIcon;
import javax.swing.JLabel;
import javax.swing.JTable;
import javax.swing.table.AbstractTableModel;
import javax.swing.table.TableCellRenderer;
/**
*
* @author Vanya Terra Ardani
*/
public class JTableAbstractTableModelWithIcon extends javax.swing.JFrame {
private Vector data = new Vector();
/** Creates new form JTableAbstractTableModel */
public JTableAbstractTableModelWithIcon() {
initComponents();
table.setModel(new AbstractTableModel() {
String[] colum = new String[]{"No", "Name", "Address"};
@Override
public int getRowCount() {
return data.size();
}
@Override
public int getColumnCount() {
return colum.length;
}
@Override
public Object getValueAt(int rowIndex, int columnIndex) {
return columnIndex == 0 ? "" + (rowIndex + 1) : data.get(rowIndex)[columnIndex];
}
@Override
public String getColumnName(int column) {
return colum[column];
}
});
table.getColumn(table.getColumnName(0)).setCellRenderer(new TableCellRenderer() {
private Icon icon = new ImageIcon(getClass().getResource("icon.png"));
public Component getTableCellRendererComponent(JTable table, Object value, boolean isSelected, boolean hasFocus, int row, int column) {
JLabel label = new JLabel(value.toString());
label.setIcon(icon);
label.setOpaque(true);
label.setBackground(table.getBackground());
label.setForeground(table.getForeground());
if (isSelected) {
label.setBackground(table.getSelectionBackground());
label.setForeground(table.getSelectionForeground());
}
if (hasFocus) {
label.setBorder(BorderFactory.createLineBorder(Color.RED));
}
return label;
}
});
data.add(new String[]{"", "Sri Kuntadi", "Purwodadi"});
data.add(new String[]{"", "Fajar Ichwanul Arifin", "Cilacap"});
data.add(new String[]{"", "Arif Nurcahyo", "Magetan"});
data.add(new String[]{"", "Muh Adly Hamid", "Makasar"});
}
/** This method is called from within the constructor to
* initialize the form.
* WARNING: Do NOT modify this code. The content of this method is
* always regenerated by the Form Editor.
*/
@SuppressWarnings("unchecked")
//
private void initComponents() {
scroller = new javax.swing.JScrollPane();
table = new javax.swing.JTable();
setDefaultCloseOperation(javax.swing.WindowConstants.EXIT_ON_CLOSE);
setTitle("JTable using AbstractTableModel w/ icon");
scroller.setName("scroller"); // NOI18N
table.setName("table"); // NOI18N
scroller.setViewportView(table);
javax.swing.GroupLayout layout = new javax.swing.GroupLayout(getContentPane());
getContentPane().setLayout(layout);
layout.setHorizontalGroup(
layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
.addGroup(layout.createSequentialGroup()
.addContainerGap()
.addComponent(scroller, javax.swing.GroupLayout.DEFAULT_SIZE, 394, Short.MAX_VALUE)
.addContainerGap())
);
layout.setVerticalGroup(
layout.createParallelGroup(javax.swing.GroupLayout.Alignment.LEADING)
.addGroup(layout.createSequentialGroup()
.addContainerGap()
.addComponent(scroller, javax.swing.GroupLayout.DEFAULT_SIZE, 283, Short.MAX_VALUE)
.addContainerGap())
);
pack();
}//
/**
* @param args the command line arguments
*/
public static void main(String args[]) {
java.awt.EventQueue.invokeLater(new Runnable() {
public void run() {
new JTableAbstractTableModelWithIcon().setVisible(true);
}
});
}
// Variables declaration - do not modify
public javax.swing.JScrollPane scroller;
public javax.swing.JTable table;
// End of variables declaration
}
